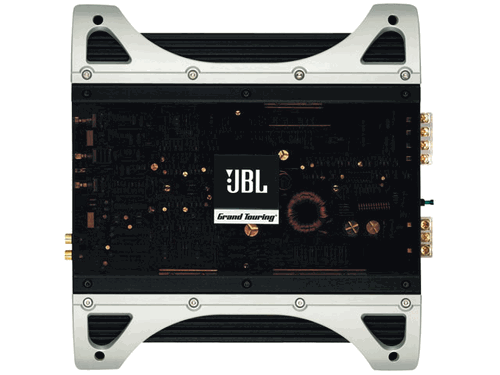

JBL GTO75.2II 2 Channel Amplifier

Click to enlarge

MSRP:
$189.99
Your Price:
$119.99 (You save $70.00)
SKU:
GTO75.2II
Brand:
JBL
Condition:
New
Weight:
18.00 LBS
Rating:
( )
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description



Overview:

TecThe GTO 75.2s high-output MOSFET power supply ensures optimum power delivery into numerous impedances with low distortion. The 75.2 comes outfitted with a variable 12dB per octave electronic crossover allowing you to optimize system tuning based on speaker location and accompanying loudspeaker components.Full range preamp outputs are provided facilitating multiple amplifier hookups without the need for high-loss Y-adapters or signal splitters.

Technical Specifications:

  • The 75.2 comes outfitted with a variable 12dB per octave electronic crossover allowing you to optimize system tuning based on speaker location and accompanying loudspeaker components.
  • Full range preamp outputs are provided facilitating multiple amplifier hookups without the need for high-loss Y-adapters or signal splitters.
  • Power Output: 97 watts RMS x 2 channel at 4 ohms and ≤ 1% THD + N
  • 145 watts RMS x 2 channel at 2 ohms,
  • 14.4V supply and ≤ 1% THD + N
  • Signal-to-Noise Ratio: 82 dBA (reference 1 watt into 4 ohms)
  • Dynamic Power: 190 watts at 2 ohms
  • Effective Damping Factor: 6.39 at 4 ohms
  • Frequency Response (–3dB): 10Hz - 90kHz (-3dB)
  • Maximum Input Signal: 5.5V
  • Maximum Sensitivity: 230mV
  • Output Regulation: .069 dB at 4 ohms
  • Dimensions (H x W x D): 2-3/8" x 11-5/8" x 12-5/16"
