Overview:

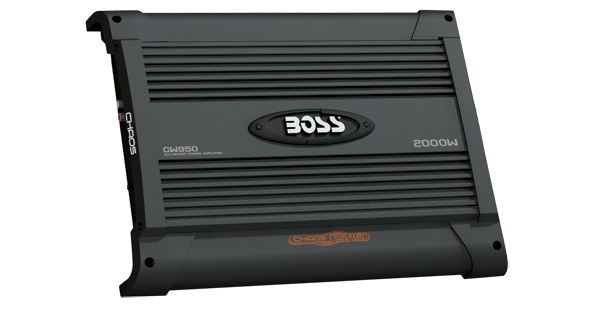

• Chaos Wired Series 2-Channel Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohms: 300 watts x 2 chan.
• Max Power Rating:
  • 2 ohms: 1000 watts x 2 chan.
  • Bridged, 4 ohms: 2000 watts x 1 chan.
• MOSFET Pulse Width Modulated (PWM) power supply
• Bass Remote Details (Wired remote bass level control included)
• LED power and protect indicators
• Variable Bass Boost (0-18 dB bass boost)
• Tri-mode capability
• Soft turn-on circuit
• 2/1 channel operation
• Speaker-level inputs with signal sensing for automatic turn-on
• 2-Way System Protection circuitry (thermal and speaker short protection)
• Variable input gain controls
• Matte black heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Fixed high-pass filter (200 Hz)
• Variable low-pass filter (35-160 Hz)
• Damping factor: 125+
• Input sensitivity: 2V-8V/100mV-2V
• Frequency response: 9-50,000 Hz
• Dimensions: 11-13/16"L x 16"W x 2-1/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Manufacturer's warranty
