Overview:

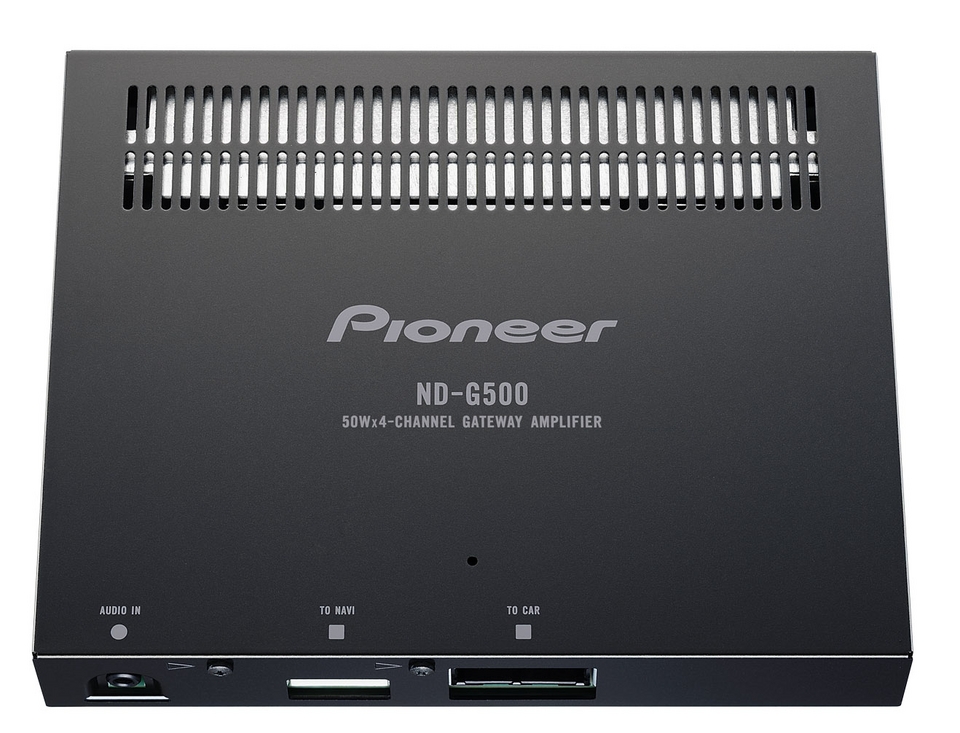

Pioneer designed the ND-G500 Gateway amplifier to complement the AVIC-F500BT on-dash navigator. This compact 4-channel amp will inject more power into your car's factory sound system, for crisp, clear sound that's superior to most factory systems. In addition to boosting the power of your factory system, the amp features an auxiliary input that accepts the audio signal from the AVIC-F500BT, so you'll hear music, navigation directions, and Bluetooth enabled phone calls clearly over your car's speaker system. The ND-G500 connects to your factory radio's speaker outputs with the help of the supplied wiring harnesses.

Note: This amplifier should not be used in premium factory systems that include external amplifiers.

Technical Specifications:

• 4-channel integration amplifier for factory stereo systems
• designed for use with the Pioneer AVIC-F500BT multimedia navigation system
• 12 watts RMS CEA-2006 x 4 (50 watts peak x 4)
• auxiliary input accepts audio (music, navigation directions, and Bluetooth enabled phone calls) from the AVIC-F500BT
• CEA-2006 compliant
• fuse rating: 10A x 1
• wiring harness included
• 5-1/2"W x 1-1/16"H x 6-7/8"D
