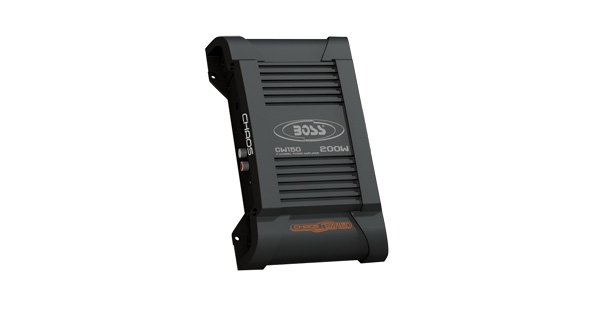

Boss CW150 200W Max, Chaos Wired Series 2-Channel Amplifier
Product Description
Overview:
- Chaos Wired Series 2-Channel Car Amplifier
- RMS Power Rating:
- 4 ohms: 50 watts x 2 chan.
- 2 ohms: 100 watts x 2 chan.
- Max power output: 200 watts
- MOSFET power supply
- LED power and protect indicators
- Bass Boost (0-18 dB bass boost)
- 2/1 channel operation
- High level inputs
- 2-Way system protection circuitry (thermal and speaker short)
- Soft turn on circuit
- Heavy duty silver anodized heatsink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Variable input gain control
- Variable low-pass filter
- Variable subsonic Filter
- Frequency response: 12-22,000 Hz
- Dimensions: 6-1/4"L x 9-11/16"W x 2-1/6"H
- 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
- 1-year Manufacturer's warranty
|
Amplifier Specifications
|
|
| Amplifier Class | AB |
| Number of Channels | 2 |
| RMS Power (4 ohms) | 50 watts x 2 channels |
| RMS Power (2 ohms) | 100 watts x 2 channels |
| RMS Power (1 ohm) | N/A |
| Bridged RMS Power | N/A |
| Total RMS Power Output | 200 watts |
| Peak Power Output | 100 watts x 2 channels |
| Total Peak Power Output | 200 watts |
| Maximum Input Gauge Size | 4 |
| Minimum Impedance Unbridged | 2 ohms |
| Minimum Impedance Bridged | N/A |
| THD at Rated RMS Power | .01% |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Built-in Crossover | Low-pass (LP) |
| High-Pass Crossover Frequency | N/A |
| Low-Pass Crossover Frequency | N/A |
| Subsonic Filter | N/A |
| Signal-to-Noise Ratio | 90 dB |
| Channel Separation | 60 dB |
| Bass Boost | 0 - 18 dB |
| Bass/Gain Remote | No |
| Fan Cooled | No |
| Fuse Rating | 7.5A x 1 |
